Prepare body for welding in wheelhouse - AR62.20-P-1200-13P

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm
WH58.30-Z-1024-04A	Abrasive disk, dia. 115 mm, 80 m/s (max. 13,250 rpm)

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1003-03A	Angle grinder (electric/pneumatic)
WE58.40-Z-1005-03A	Wet/dry vacuum cleaner

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1001-07A	Zinc dust paint suitable for spot welding	A 000 986 34 42

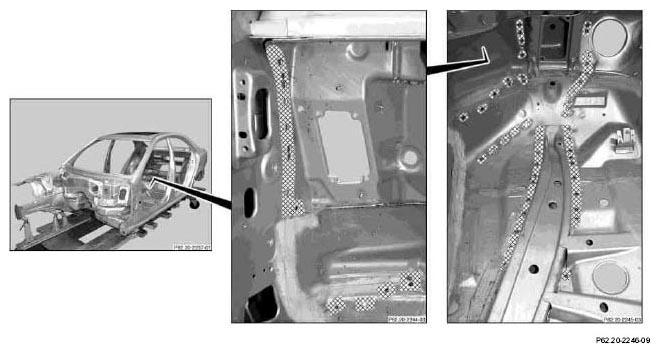

Fig 1: Identifying Sanding Areas - In Wheel House (1 Of 3)

Illustrated on Model 203.0

Sand connection surfaces down to bare metal in the shaded areas.
Coat insides of spot weld flanges with zinc dust paint.
Sand spot weld flanges down to bare metal on both sides.
Sand connection surfaces down to bare metal in the shaded areas.
Sand spot weld flanges down to bare metal on both sides.

Illustrated on Model 203.0

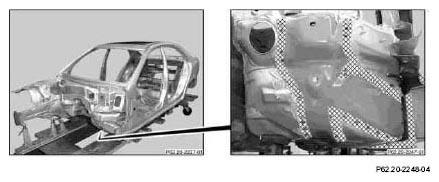

Fig 2: Identifying Sanding Areas - In Wheel House (2 Of 3)
Remove grinding and drilling chips using wet/dry vacuum cleaner.
Coat insides of spot weld flanges with zinc dust paint.

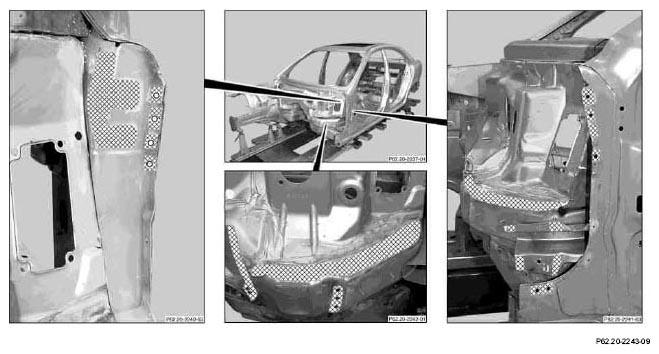

Fig 3: Identifying Sanding Areas - In Wheel House (3 Of 3)

Illustrated on Model 203.0

Sand connection surfaces down to bare metal in the shaded areas.
Sand spot weld flanges down to bare metal on both sides.
Remove grinding and drilling chips using wet/dry vacuum cleaner.
Coat insides of spot weld flanges with zinc dust paint.
