Install wheelhouse and weld in - AR62.20-P-1200-17P

COMMERCIALLY AVAILABLE TOOLS

Number Designation
WH58.30-Z-1003-01A Electrode miller
WH58.30-Z-1003-02A Clamping pliers
WORKSHOP EQUIPMENT

WE58.40-Z-1001-02A Inert gas welder
WE58.40-Z-1002-02A Spot welder

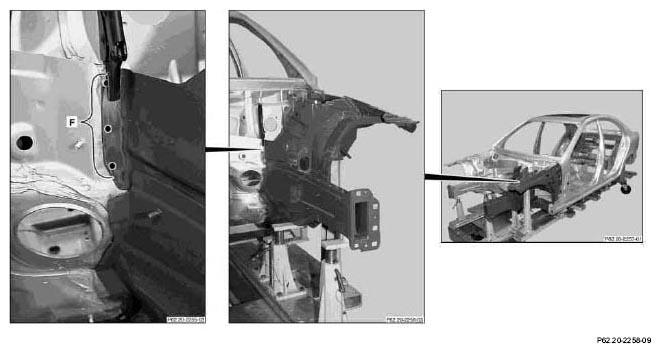

Fig 1: Identifying Welding Area In Wheelhouse (1 Of 5)
G04735105

Shown on model 203.0

  1. Fit wheelhouse and fasten with SPECIAL TOOL straightening tool and COMMERCIALLY AVAILABLE TOOLS clamps.
  2. Weld in wheelhouse with POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (area F).

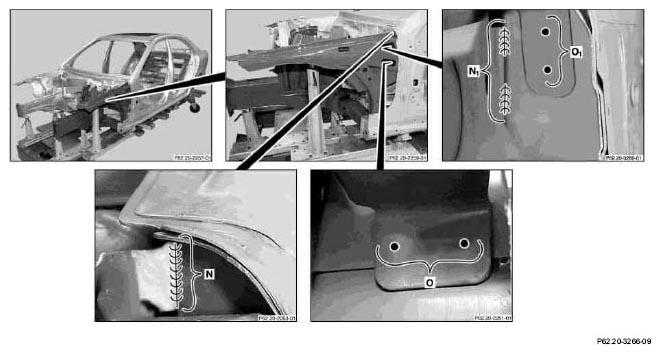

    Fig 2: Identifying Welding Area In Wheelhouse (2 Of 5)
    G04735106

    3. Shown on model 203.0

  3. Weld in wheelhouse with SHIELDED GAS SEAM WELD (areas N, N1 ).
  4. Weld in wheelhouse with SHIELDED GAS PLUG WELD (areas O, O1 ).

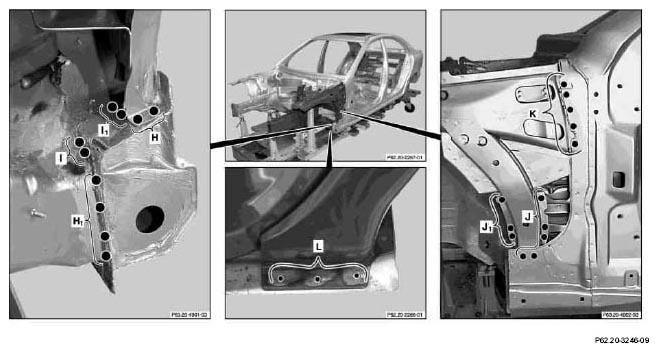

    Fig 3: Identifying Welding Area In Wheelhouse (3 Of 5)
    G04735107

    5. Shown on model 203.0

  5. Weld in wheelhouse with SHIELDED GAS PLUG WELD (areas I, I1 , J, K).
  6. Weld in wheelhouse with POLARIZATION RESISTANCE SINGLE-ROW SPOT WELD (areas J1 , H, H1 , L).
  7. Weld in wheelhouse with SHIELDED GAS PLUG WELD (area G).

    Shown on model 203.0

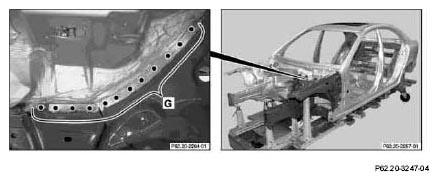

    Fig 4: Identifying Welding Area In Wheelhouse (4 Of 5)
    G04735108

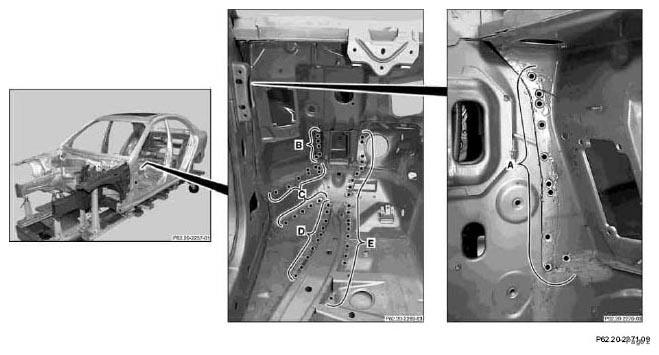

    Fig 5: Identifying Welding Area In Wheelhouse (5 Of 5)
    G04735109

    8. Shown on model 203.0

  8. Weld in wheelhouse with SHIELDED GAS PLUG WELD (areas A, B, C, D and E).
