Install test and welding device - AR62.20-P-1286-04PEA

Spring strut installed

Fig 1: Identifying Inspection And Welding Device (203 589 14 23 00)

Fig 2: Identifying Inspection And Welding Device (203 589 15 23 00)

Check and welding device

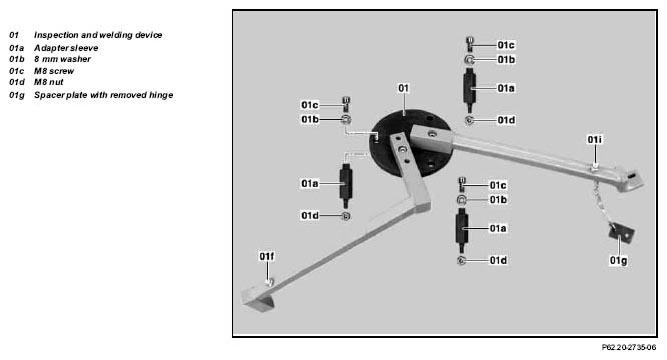

Fig 3: Identifying Inspection And Welding Device Components (1 Of 2)

Fig 4: Identifying Inspection And Welding Device Components (2 Of 2)

Install test and welding device

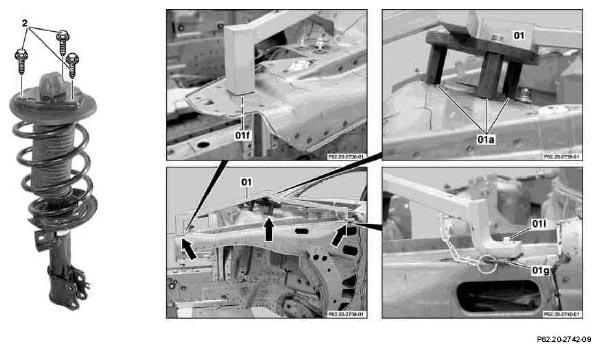

1. Unscrew bolts (2) from spring strut.
2. Loosely screw adapter sleeves (01a) into spring strut.
3. Position check and welding device (01) to spring strut dome, engine hood hinge and upper front longitudinal member (arrows).
4. Tighten adapter sleeves (01a).
5. Screw check and welding device (01) and adapter sleeve (01a) to washer (01b) and screw (01c).
6. Screw bolt (01i) into threaded hole on engine hood hinge.

   Use spacer plate (01g) with hinge removed.

7. Screw bolt (01f) into check and welding device from engine side.
