Install test and welding device - AR62.20-P-1286-04PAA

Spring strut removed

Fig 1: Identifying Inspection And Welding Device (203 589 14 23 00)

Fig 2: Identifying Inspection And Welding Device (203 589 15 23 00)

Assembling test and welding device

1. Fasten adapter sleeve (01a) to check and welding device (01) with screws (01c) and washers (01b).

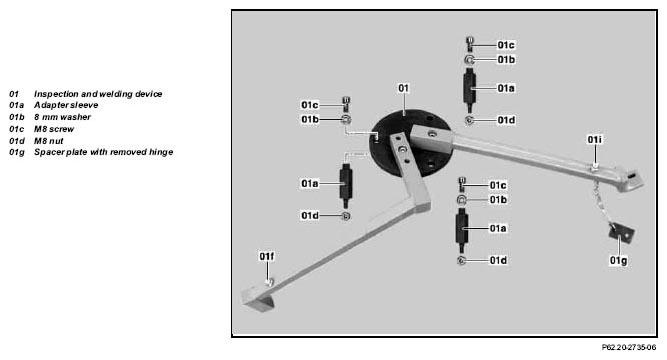

   Fig 3: Identifying Inspection And Welding Device Components (1 Of 2)


   Fig 4: Identifying Inspection And Welding Device Components (2 Of 2)



Install test and welding device

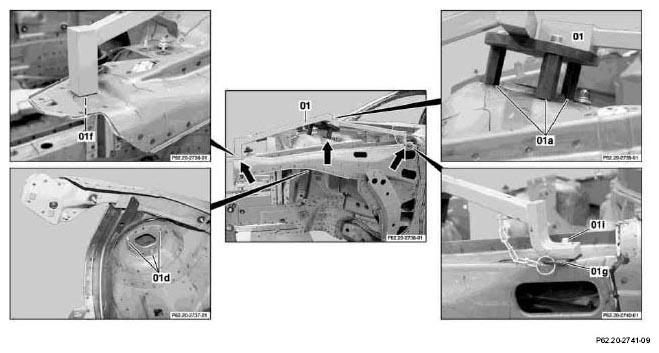

2. Position check and welding device (01) to spring strut dome, engine hood hinge and upper front longitudinal member (arrows).
3. Screw nut (01d) to adapter sleeves (01a) from bottom
4. Screw bolt (01i) into threaded hole on engine hood hinge.

   Use spacer plate (01g) with hinge removed.

5. Screw bolt (01f) into check and welding device from engine side.
