Install check and welding device - AR62.20-P-1286-04PE

Suspension strut installed

FRONT AXLE SHOCK ABSORBER

Fig 1: Identifying Test And Welding Device (203 589 05 23 00)

Fig 2: Identifying Test And Welding Device (203 589 04 23 00)

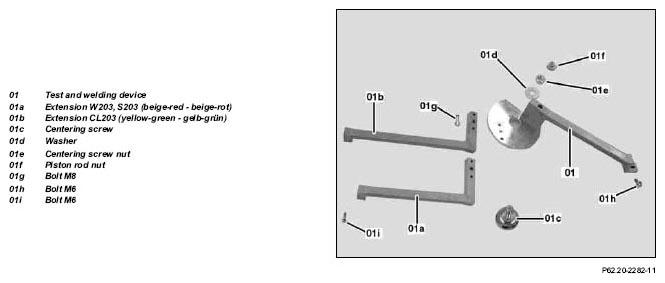

Assemble test and welding device

1. Fasten extension W203, S203 (beige/red) (01a), extension CL203 (yellow/green) (01b) to check and welding gauge (01) with bolt M8 (01g) according to corresponding vehicle model.
   Fig 3: Identifying Test And Welding Device Components (1 Of 3)

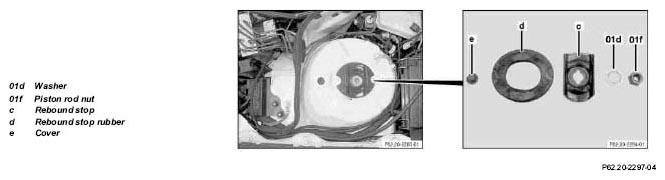

Prepare vehicle for installation of test and welding device

2. Remove detachable body components from spring strut tower (01d, 01f, c, d, e).
   Fig 4: Identifying Test And Welding Device Components (2 Of 3)


Fig 5: Identifying Test And Welding Device Components (3 Of 3)

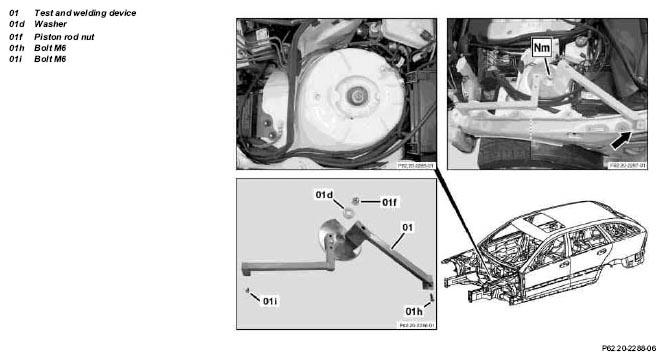

Install test and welding device

3. Position test and welding device on suspension strut tower and extension on engine hood hinge mount (arrow).
4. Position shim (01d).
5. Position piston rod nut (01f).
6. Screw bolt M6 (01h) into threaded hole of engine hood hinge mount.
7. Tighten piston rod nut (01f) and bolt M6 (01h), while keeping extension W203, S203 beige/red (01a), extension CL203 yellow/green (01b) under tension from outside of vehicle.

   When performing check work, fasten extension W203, S203 (beige/red) (01a), extension CL203 (yellow/green) (01b) from bottom with bolt M6 (01i).
