Install bottom section of firewall - AR62.25-P-1100-03P
COMMERCIALLY AVAILABLE TOOLS
| Number | Designation |
|---|---|
| WH58.30-Z-1003-02A | Clamping pliers |
| WH58.30-Z-1038-02A | Manual temporary fastener, dia.6.4 mm - clamping range 0 -15 mm, identification color silver Company Hausmann GmbH D-34346 Hann. Munden, Germany |
| WH58.30-Z-1003-29A | Hand riveter |
WORKSHOP EQUIPMENT
| WE58.40-Z-1001-02A | Inert gas welder |
| WE58.40-Z-1001-03A | Drill (electric/pneumatic) |
| WE58.40-Z-1005-03A | Wet/dry vacuum cleaner |
| WE58.40-Z-1003-14A | Blind rivet tool |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1041-01A | Seam sealant, sprayable 310 ml | A 002 989 84 20 |
| BR00.45-Z-1003-01A | Sealant | A 001 989 63 20 |
| BR00.45-Z-1001-13A | Rivet | A 003 990 35 97 |
- Apply MB body sealant to firewall (area F).
Shown on model 203.0

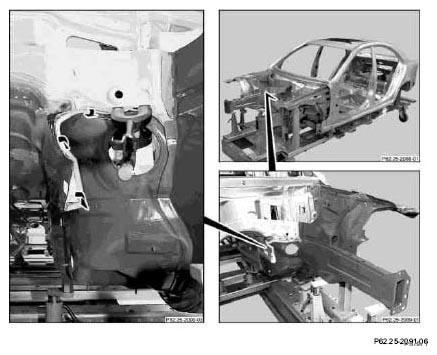

- Install firewall and wheelhouse.
- Fasten wheelhouse to straightening tool.
- Fit firewall to wheelhouse and body and fasten with clamps.
- Position spot welding flange bent open on new part.
Shown on model 203.0

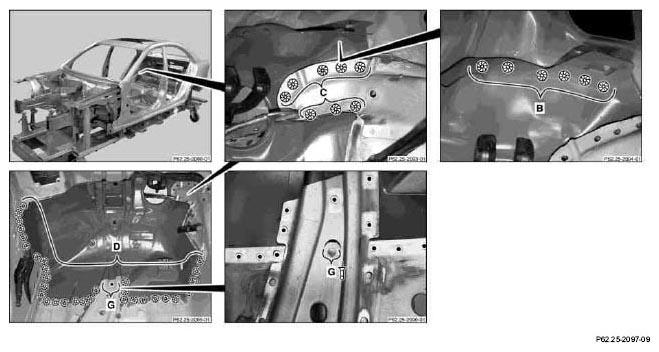

- Drill dia. 6.5 mm rivet hole (area G).
- Debur rivet hole from bottom (area G).
- Rivet bottom firewall with Polygrip flat head rivets, dia. 6.4 x 14 mm (area G).
- Weld in bottom section of firewall with
(areas B, C and D).
- Weld in bottom section of fire wall with
Shown on model 203.0
Shown on model 203.0
