Cut out wheelhouse on passenger compartment side - AR62.20-P-1200-11P

Fig 1: Identifying Spot Weld Milling Cutter (201 589 00 51 00)

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1002-01A	Ball cutter, dia. 12 mm
WH58.30-Z-1001-03A	Round wire brush, braided, dia. 70 mm

WORKSHOP EQUIPMENT

WE58.40-Z-1001-03A	Drill (electric/pneumatic)
WE58.40-Z-1002-03A	Straight grinder (electric/pneumatic)

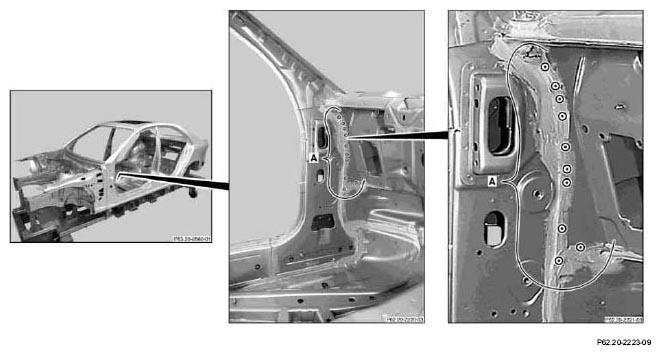

Fig 2: Identifying Spot Weld Cutting Areas - Passenger Compartment Side (1 Of 2)

Shown on model 203.0

Expose spot welds (area A).
Cut out spot welds with spherical milling cutter (area A).
Expose spot welds (area B).
Cut out spot welds with spot weld milling cutter and spherical milling cutter (area B).
Expose spot welds (areas C, D and E).
Cut out spot welds with spot weld milling cutter (areas C, D and E).
Shown on model 203.0

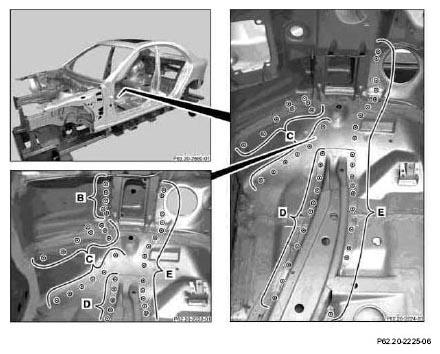

Fig 3: Identifying Spot Weld Cutting Areas - Passenger Compartment Side (2 Of 2)
