Check vehicle for water penetration - SM62.00-P-0001A

MODEL WDB203.### #F as of 353053 up to 361926, WDB209.### #F as of 027292 up to 030390

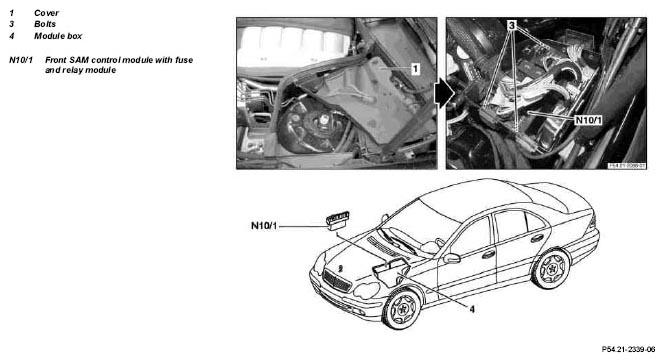

Fig 1: Identifying Cover, Bolts & Front SAM Control Module With Fuse And Relay Module

1	Visually inspect seam seal.		SM62.00-P-0001-01A
	If the seam seal was not filled: ↓
2	Remove protective cover from fender
3	Open driver door
4	Completely move driver seat back
5	Remove interior paneling at left entrance
6	Remove paneling from A-pillar	Model 203	AR68.30-P-4050P
		Model 209	AR68.30-P-4050Q
7	Carry out check for water penetration		SM62.00-P-0001-02A
	If water penetration is found at the seam seal in the interior compartment. ↓
8	Remove dust filter housing of heater, air conditioning
	Risk of explosion  caused by oxyhydrogen gas. Risk of poisoning and caustic burns  caused by swallowing battery acid. Risk of injury  caused by burns to skin and eyes from battery acid or when handling damaged lead-acid batteries	No fire, sparks, open flames or smoking. Wear acid-resistant gloves, clothing and safety glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
9	Disconnect ground line from battery	Model 203	AR54.10-P-0003P
		Model 209	AR54.10-P-0003Q
	Notes on battery	All models	AH54.10-P-0001-01A
	Risk of injury caused by jamming or crushing, in extreme cases possible resulting in severing of limbs, when working on windshield wiper mechanism	Always remove ignition key when working on windshield wiper mechanism.	AS82.30-Z-0001-01A
10	Remove/install left and right wiper arms	Model 203	AR82.30-P-6100P
		Model 209	AR82.30-P-6100Q
11	Remove/install cover (1) over fuse and relay box
12	Remove/install lid on signal acquisition and actuation module
13	Remove/install wiper system	Model 203, 209	AR82.30-P-6400P
14	Remove/install injection system control unit	Engine 611 in model 203 Engine 612 in model 203, 209 Engine 111 in model 203 Engine 112 in model 203, 209 Engine 113 in model 209	AR07.08-P-7008P
15	Remove/install signal acquisition and actuation module (SAM)
16	Remove/install left floor mat
17	Remove/install accelerator pedal	Model 203, 209	AR30.12-P-1321P
18	Remove/install cover for bearing bracket bearing bracket
19	Remove/install left front floor covering	Model 203, 209	AR68.20-P-2050P
20	Remove/install noise absorber
21	Loosen fuse and relay box and secure to side
22	Subsequently seal seam under left front fuse and relay box.		AR97.10-P-4000-01P
23	Install in the reverse order
24	Connect exhaust gas hose
	Risk of accident  caused by vehicle starting off on its own with the engine running. Risk of injury  caused by crushing and burns when working around the engine during start-up or while engine is running	Secure vehicle to prevent it from moving. Wear closed and snug-fitting work clothes. Do not grasp hot or rotating parts.	AS00.00-Z-0005-01A
25	Carry out engine test run
26	Perform basic programming	Model 203, 463.243 /244 /245 /246 /247 /248 /249 /250 /254 /309 /322 /323 /332 /33	AR00.19-P-0200P
		Model 209	AR00.19-P-0200Q
27	Perform function check
28	Perform quick test
