DTR control unit, location - GF30.30-P-3104-01K

Shows model 220

Fig 1: Identifying DTR Control Unit - Shows Model 220

Models 209, 215, 220, 230, 240: Located in the front passenger footwell under the step plate at the front.

Shown in model 211

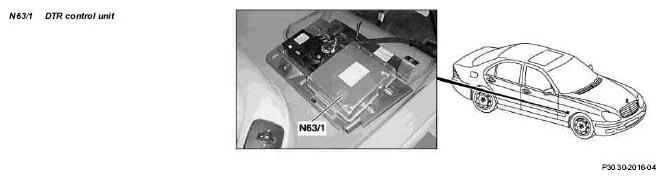

Fig 2: Identifying DTR Control Unit - In Model 211

Mount under the front passenger seat on the floor panel.
