Automated manual transmission control module, location / task / design - GF26.19-P-4009P

TRANSMISSION 716.6 in MODEL 203 with CODE (424) Sequentronic (SEQ) manual transmission

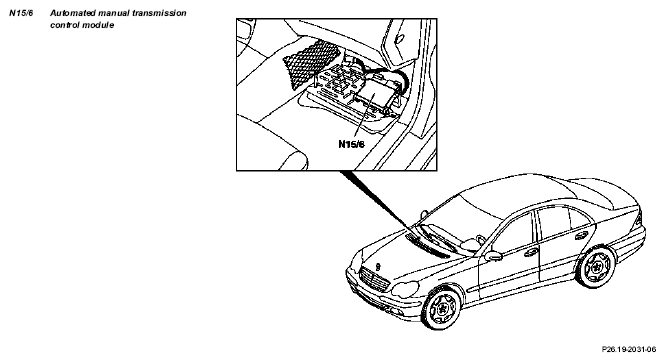

Fig 1: Locating Automated Manual Transmission Control Module

	Automated manual transmission control module, location	The automated manual transmission control module (N15/6) is located under the step plate in the front passenger-side footwell.
	Automated manual transmission control module, function		GF26.19-P-4009-01P
	Automated manual transmission control module, design	The automated manual transmission control module (N15/6) consists of the following components: Control electronics Power electronics Housing with 12+2-pin and 18-pin connectors
