ME-SFI synchronizing fuel injection and firing order function - GF07.61-P-4009F
ENGINE 104.941 /943 /944 /991 /994as of 1.8.96
ENGINE 104.995 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model year 97 Japanese version
ENGINE 111.921 /942 as of 1.9.98, 111.943, 111.944 as of 1.8.96, 111.946 as of 1.6.98, 111.947 /973, 111.975 as of 1.8.96
ENGINE 111.945 in MODEL 208.335/435 as of 1.6.98, 202.020 /080 as of 1.9.98
ENGINE 111.974 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 119.980 /981 /982 /985
ENGINE 120.982/ 983
ENGINE 137.970

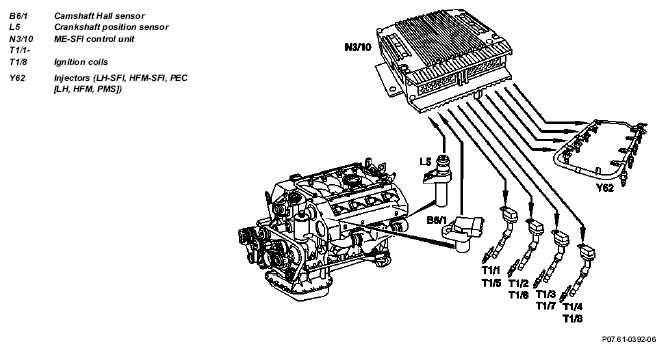

Shown on Engine 119
Task
When the engine is started, defining the fuel injection order in line with the firing order on the basis of the signals supplied by the crankshaft position sensor and camshaft Hall sensor. In this way, enabling cylinder-selective cylinder shutoff and knock control system and optimizing emission levels.
Design/function
When the crankshaft is rotating, an alternating voltage is generated in the crankshaft position sensor by the teeth of the driven plate. In this case, each tooth generates an alternating voltage signal.
No voltage is generated as a result of the gap created by 2 missing teeth. The ME-SFI control unit detects the TDC position of cylinder 1 and 6 or cylinder 7 and 12, respectively, with the 2nd negative slope after the gap.
If the signal from the camshaft Hall sensor is still at 0 V ("low") at this moment, the ME-SFI control unit processes this to detect ignition TDC of cylinder 1 and 7, respectively.
Synchronization of the fuel injection and firing order is further processed by the ME-SFI control unit for actuating the ignition coils and the fuel injectors. In addition, it is required for the anti-knock control and for the fuel shutoff at individual cylinders.
If no signal is received from the camshaft Hall sensor, the ME-SFI control unit determines the ignition TDC of cylinder 1 randomly. Engine 111, 104 start about 1 second later.
Engine 119 starts if ignition TDC of cylinder 1 is determined correctly. Engine may possibly start only at further attempt.
| Engine | Recognition of TDC position of cylinder | Recognition of ignition TDC of cylinder |
|---|---|---|
| 111 | 1 and 4 | 1 |
| 119, 104, 112, 113 | 1 and 6 | 1 |
| 120 | Right cylinder bank: 1 and 6 | Right cylinder bank: 1 |
| Left cylinder bank: 7 and 12 | Left cylinder bank: 7 | |
| 137 | 1 and 7 | Cylinder 1 (signal of camshaft Hall sensor right bank of cylinders "low") |
| Crankshaft position sensor, location/task/design/function | GF07.04-P-4116F | ||
| Camshaft Hall sensor, location/task/design/function | GF07.04-P-4117F | ||
| ME-SFI ignition system signal assignment | Engine 104 | GF15.12-P-0001-02D | |
| Engine 111 | GF15.12-P-0001-02G | ||
| Engine 112 | GF15.12-P-0001-02A | ||
| Engine 113 | GF15.12-P-0001-02B | ||
| Engine 119 | GF15.12-P-0001-02E | ||
| Engine 120 | GF15.12-P-0001-02F | ||
| Motor electronics control unit, location/task/design/function | GF15.61-P-5000F |
