Motor electronics (ME-SFI ) fuel injection and ignition system control unit input signals - GF07.61-P-0001-06A

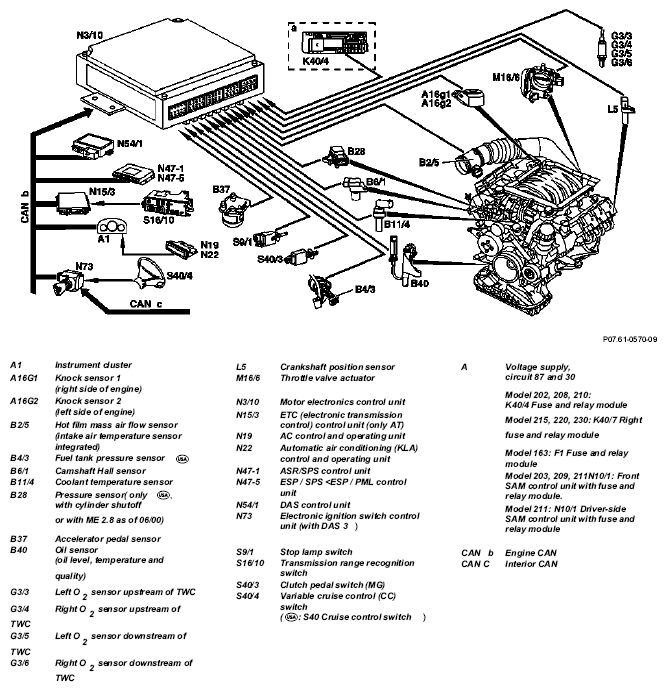

Fig 1: Motor Electronics Fuel Injection And Ignition System Control Unit Input Signals - Shown On Engine 112
G04736769

Shown on Engine 112
