Hot film mass air flow sensor, location/task/design/function - GF07.07-P-4118G
ENGINE 104.941 /943 /944 /991 /994 as of 1.8.96
ENGINE 104.995 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model Year 97 Japanese version
ENGINE 111.921 as of 1.9.98, 111.942 as of 1.8.96, 111.943, 111.944 as of 1.8.96, 111.946 as of 1.6.98, 111.947 /973/977, 111.975 as of 1.8.96
ENGINE 111.945 in MODEL 208.335 /435 as of 1.6.98, 202.020 /080 as of 1.8.96
ENGINE 111.974 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998
ENGINE 112.910 /911 /912 /913 /914 /916 /917 /920 /921 /922 /923 /940 /941 /942 /943 /944 /946 /947 /949 /953 /954 /955 /970 /972 /973 /975
ENGINE 113.940 /941 /942 /943 /948 /960 /961 /963 /965 /966 /967 /968 /969
ENGINE 137.970
| Hot film mass air flow sensor, location | Engine 111 | GF07.07-P-4118-01G | |
| Engine 104 | GF07.07-P-4118-01D | ||
| Engine 112, 113 | GF07.07-P-4118-01A | ||
| Engine 112, 113 | GF07.07-P-4118-01L | ||
| Hot film mass air flow sensor, task | Detecting the air mass supplied to the engine and the intake air temperature. | ||

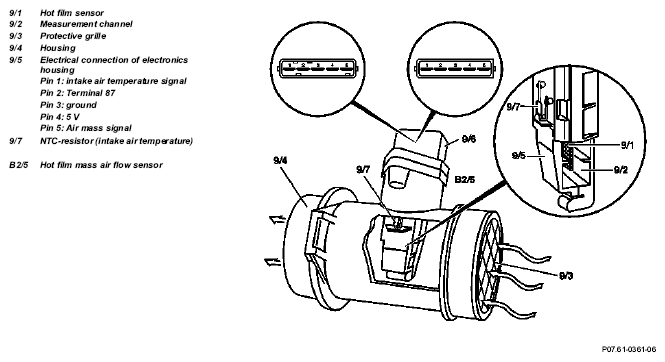

| Hot film mass air flow sensor, design | The air which is supplied to the engine flows through the air mass meter in the air intake duct and thus influences the temperature at the hot film sensor (9/1). The intake air temperature is detected at the same time by an integrated NTC resistor. Square-shaped plug connector. | ||
| Hot film mass air flow sensor, function | GF07.07-P-4118-02G |
