Hot film mass air flow sensor position/task/design/function - GF07.07-P-4118GS
ENGINE 111.951 /952 /955 /956 /957 /958 /982 /983
Design

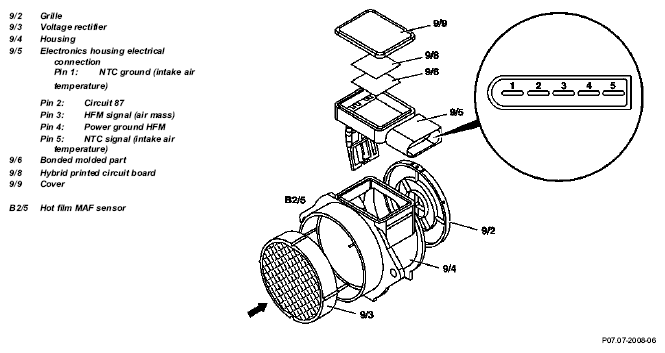

Fig 1: Identifying Hot Film Mass Air Flow Sensor Components - Engine 111.951 /952 /955 /956 /957 /958 /982 /983
| Hot film mass air flow sensor position | Model 170.444/49 | GF07.07-P-4118-01GR | |
| Model 202.081/87 | GF07.07-P-4118-01GT | ||
| Model 208.344/348/444/448 | |||
| Model 203.035/045/235/245/735/745 | GF07.07-P-4118-01GS | ||
| Model 210.048/248 | GF07.07-P-4118-01GQ | ||
| Hot film mass air flow sensor task | Detecting the air mass supplied to the engine and the intake air temperature | ||
| Hot film mass air flow sensor function | GF07.07-P-4118-02GS |
