Hot film engine management (HFM-SFI) fuel injection and ignition system control module output signals - GF07.51-P-0001-06G

Engine 111

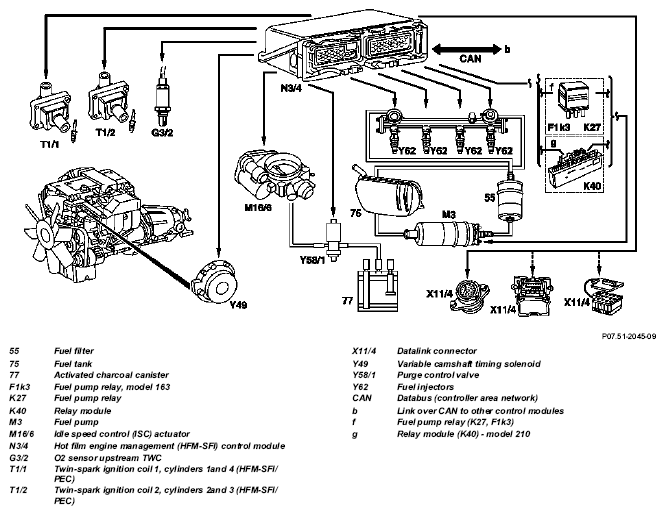

Fig 1: Identifying Fuel Injection And Ignition System Control Module Output Signals Components - Engine 111
