Hot film engine management (HFM-SFI) fuel injection and ignition system control module input signals - GF07.51-P-0001-05D

Shown on engine 104

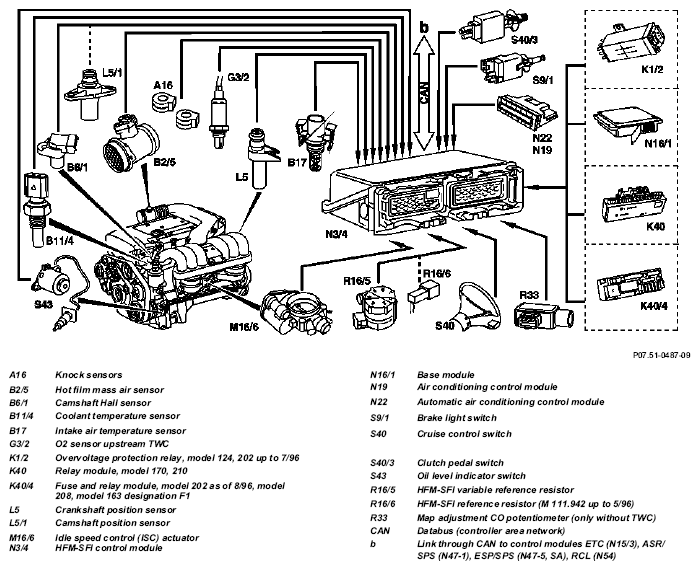

Fig 1: Identifying Hot Film Engine Management Fuel Injection And Ignition System Control Module Input Signals - Shown On Engine 104
G04624008
