Coolant temperature sensor position - GF07.04-P-5026-02GS

Engine 111

at thermostat housing up to approx. 5/96

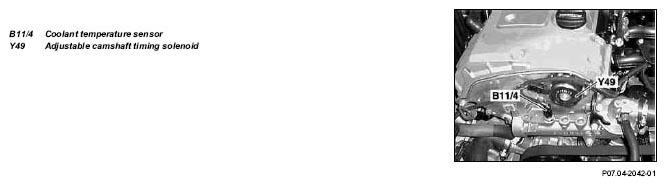

Fig 1: Identifying Coolant Temperature Sensor - At Thermostat Housing Up To Approx. 5/96

at face end of engine

Fig 2: Identifying Coolant Temperature Sensor - At Face End Of Engine

Engine 111 EVO

Fig 3: Identifying Coolant Temperature Sensor - Engine 111 EVO
