ME-SFI ignition system function diagram - GF15.12-P-0001-01GS

Basic diagram of ignition system with rotorless high voltage distribution engine 111 EURO 3

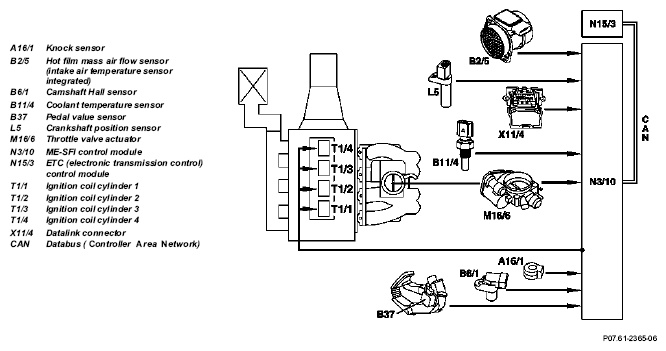

Fig 1: ME-SFI Ignition System Function Diagram - Engine 111 EURO 3
