ME-SFI ignition system function diagram - GF15.12-P-0001-01A

Basic diagram of ignition system with rotorless high voltage distribution, engine 112

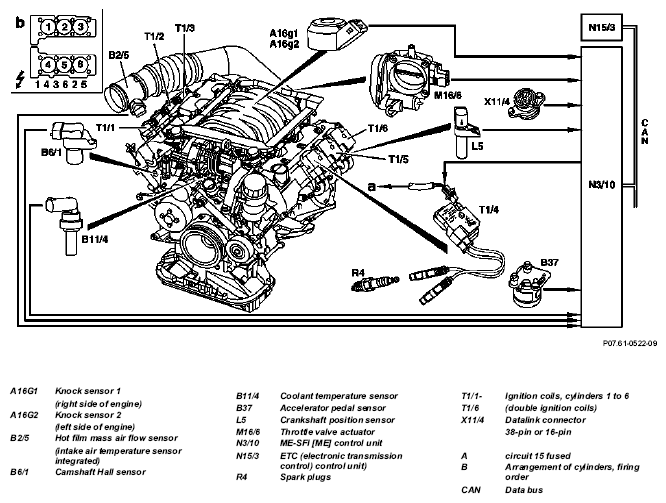

Fig 1: ME-SFI Ignition System Function Diagram - Engine 112
