Ignition coils, location - GF15.10-P-3102-01G

Engine 104, 111, 166

Engine 104

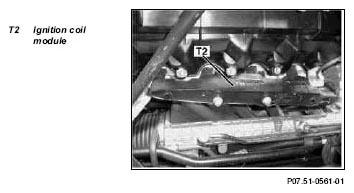

Fig 1: Identifying Ignition Coils, Location (Engine 104)

Engine 111 1st version

Fig 2: Identifying Ignition Coils, Location (Engine 111 - 1st Version)

Engine 111 2nd version

Fig 3: Identifying Ignition Coils, Location (Engine 111 - 2nd Version)

Engine 166

Fig 4: Identifying Ignition Coils, Location (Engine 166)
