Fuel pump position - GF47.20-P-4003-01P

Model 203, 209

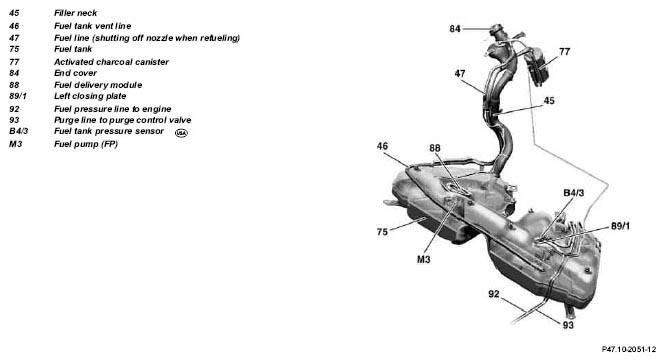

Fig 1: Identifying Fuel Pump Components - Models 203, 209
G04734891

The fuel delivery module (88) together with the fuel pump (M3) is located in the right chamber of the fuel tank.
