Fuel delivery module, location - GF47.20-P-4101-01P
Model 203, 209

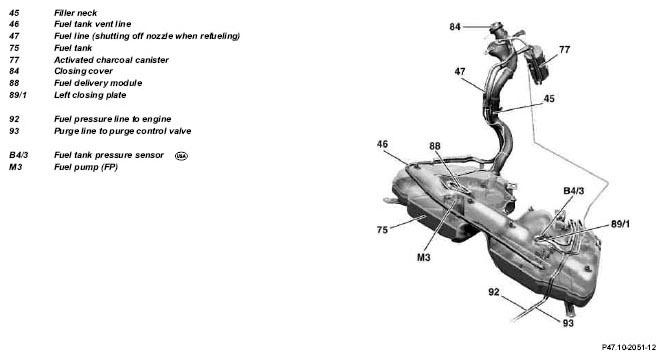

The fuel delivery module (88) together with the fuel pump (M3) is located in the right chamber of the fuel tank. In the left chamber is mounted a closing plate (89/1) with a connecting pipe, cable connector, suction jet pump (95), left fuel level sensor (B4/1) and fuel tank pressure sensor (B4/3, only
).
