Secondary air injection relay position - GF14.30-P-3101-01P

Model 203, 209

Location on Model 203

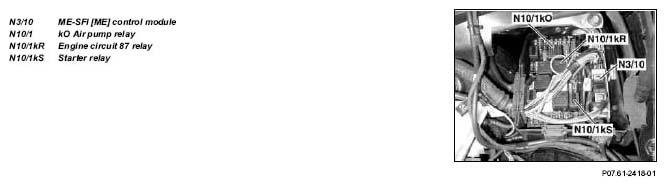

Fig 1: Identifying Secondary Air Injection Relay Components - On Model 203

G04732217
