Secondary air injection function - GF14.30-P-3012E

ENGINE 104.941, 104.943 /944 /991 /994 as of 1.8.96

ENGINE 104.995 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998 with CODE (498) as of Model Year 97 Japanese version

ENGINE 111.973, 111.975 as of 1.8.96

ENGINE 111.974 with CODE (494a) USA version with CODE (807) Model year 1997 with CODE (808) Model year 1998

ENGINE 119.980 /981 /982 /985 with CODE (491) U.S. version with CODE (923a) low emission D3 as of 12/96 TIWAN ONLYKOREA ONLY

Shown on Engine 119

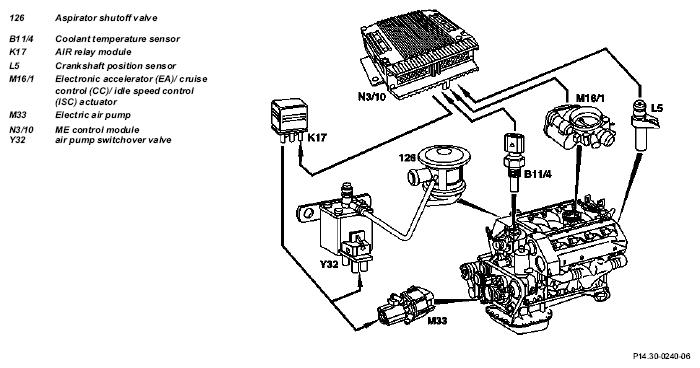

Fig 1: Identifying Secondary Air Injection Function Diagram - Shown On Engine 119
G04624297

The secondary air injection heats up the catalytic converter more rapidly to its operating temperature and thus improves the emission levels in the warming-up phase.

Function

The electric air pump (M33) is actuated through the secondary air injection relay (K17) The current consumption of the electric air pump (M33) is as much as 35 A.

Air injection relay and air pump switchover valve (Y32) are actuated simultaneously by the motor electronics control module for maximum 90 seconds after engine start, if:

After an actuation, the air injection remains deactivated until the coolant temperature has risen to more than approx. + 60 °C and then drops again to below 40 °C.

The pump draws in air through a maintenance-free filter and pumps it to the air shutoff valve. The valve at the same time prevents exhaust gases from flowing back to the air pump (check valve discontinued).

The air pump switchover valve passes on the intake manifold pressure to the aspirator shutoff valve (126). This opens and the air delivered by the air pump is pressed into the exhaust manifold.

The injected air reacts with the hot exhaust gases in the outlet port. An oxidation of carbon monoxides (CO) and hydrocarbon (HC) takes place and results in an additional increase in the exhaust temperature.

Engines with supercharger

The injected air is removed on the thrust side through the supercharger. An air pump is not required.

  ME-SFI control module position/task/design/function Engine 104 and 111 (except HFM sequential multiport fuel injection/ignition system and M111EVO), engine 112, 113 (except 113.99)
Engine 119.98, 120.98, 137, 275, 285
GF07.61-P-5000F
  Air pump, location/task/design/function Engine 104, 111, 112, 113 (except 113.9), 119.98, 120.98, 137, 166, 275, 285 with air injection through air pump GF14.30-P-3100F
  Supercharger location/task/design/function Engine 111.943 /944 /973 /975
Engine 111.955 /956 /957 /958/983
GF09.50-P-3102G
  Crankshaft position sensor location/task/design/function Engine 104 and 111 (except HFM sequential multiport fuel injection/ignition system)
Engine 112, 113 (except 112.96, 113.99)
Engine 119.98, 120.98, 137, 166, 275, 285
GF07.04-P-4116F
  Coolant temperature sensor location/task/design/function Engine 104, 111 (except HFM sequential multiport fuel injection/ignition system) GF07.04-P-5026G
    Engine 119.98, 120.98 GF07.04-P-5026F
  Air shutoff valve location/task/function Engine 104, 111, 112, 113 (except 113.9), 137, 166, 275, 285 with air injection GF14.30-P-4028F
  Check valve (injected air), location/task/design/function Engine 104.94/99, 111, 119.98, 120.98, 271KE with air injection GF14.30-P-4029F
  Electronic accelerator/cruise control/idle speed control actuator location/task/design/function Engine 104 and 111 (except HFM sequential multiport fuel injection/ignition system and M111EVO)
Engine 112, 113 (except 113.99)
Engine 119.98, 120.98, 137, 275, 285
GF30.22-P-4010F
  Lambda control function Engine 104, 111 (except HFM sequential multiport fuel injection/ignition system), 112, 113 (except 113.99), 119.98, 120.98, 137, 275, 285 GF07.61-P-4022F
  Air pump switchover valve, location/task/design/function Engine 104, 111 ME, 119, 120 with air injection through air pump GF14.30-P-3103F
  Base module location/task/design/function Model 129, 140 GF54.21-P-4013L
  Secondary air injection relay location/task/design/function Engine 104, 111, 112, 113 (except 113.9), 119.98, 120.98, 137, 166, 275, 285 with air injection through air pump GF14.30-P-3101F
  Relay module position/task/design/function Model 210 up to 2/97
Model 170
GF54.10-P-4033K
  Fuse and relay module Model 202, model 210 as of 3/97: air injection relay integrated
  Three-way catalytic converter location/task/design/function Vehicles with catalytic converter technics
Engine 104, 111, 112, 113, 119, 120, 137, 166, 271, 275, 285
GF49.10-P-3002F
