Air shutoff valve position - GF14.30-P-4028-01GR

Engine 111 EVO

Engine 111 EURO3/4 naturally aspirated engine

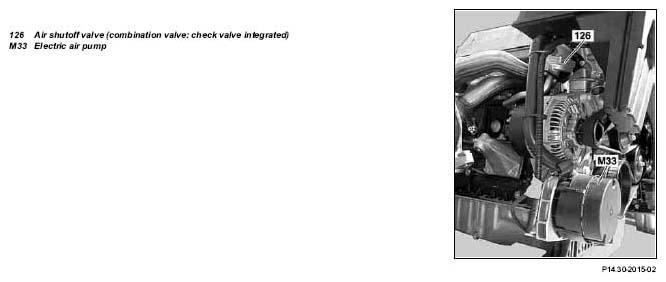

Fig 1: Identifying Air Shutoff Valve And Electric Air Pump - Engine 111 EURO3/4 Naturally Aspirated Engine
G04732227
