Air pump switchover valve, design - GF14.30-P-3103-02A

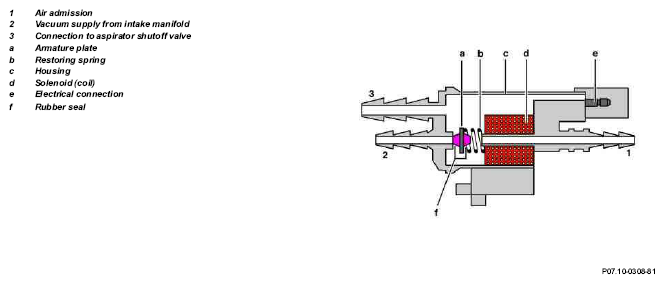

Fig 1: Air Pump Switchover Valve, Design

G04732221
