Air pump switchover valve arrangement - GF14.30-P-3103-01G

Position on engine 111 without EURO3

Fig 1: Identifying Air Pump Switchover Valve - Shown On Engine 111 Without EURO3
G04732219

Position on engine 111 with EURO3

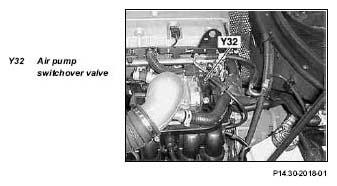

Fig 2: Identifying Air Pump Switchover Valve - Shown On Engine 111 With EURO3
G04732220
