Seal module box wiring harnesses - SM54.18-P-0009P

MODEL 203

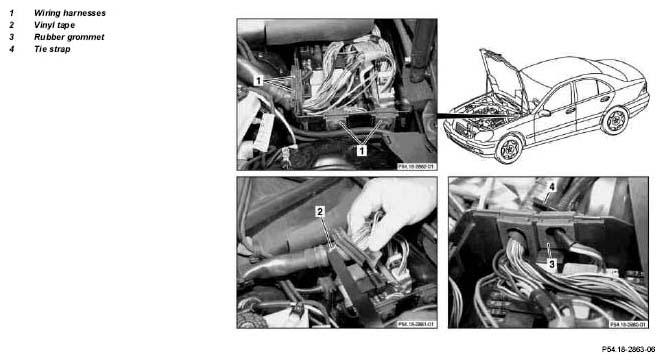

Fig 1: Identifying Seal Module Box Wiring Harnesses

G04733942

OPERATION NO. OF OPERATION TEXTS OR STANDARD TEXTS AND FLAT RATES

Vehicle category	Op. no.	Operation text	Time	Acc. no.	Code
P	023342	SEAL MODULE HOUSING WIRING HARNESSES	15 work units/1.25 h	54 950 33	203MODULBO

	Remove/install
1	Remove any water residues present on the cover of the module housing prior to removing the cover.
2	Remove module housing cover.
3	Disconnect wiring harnesses (1) from module housing	The number of wiring harnesses may vary depending on the equipment package installed.
4	Check module housing, wiring, and control modules for contamination by water residues	Check visually; dry, if necessary.
5	Insulate wiring harnesses.	Use black vinyl tape (2).
		Make sure that the insulation material starts on the cable sleeve and extends all the way through onto the untwisted, smooth surface area. The minimum overall wrapping length on the engine wiring harness must be 70 mm.
6	Install wiring harnesses.	Make sure that the rubber grommets (3) are properly seated inside the module housing. (If necessary, use sliding compound to facilitate installation.)
7	Install cable strap (4) on grommet of wiper motor wiring harness next to engine wiring harness (sealing function)
8	Install control module box cover

PARTS ORDERING NOTES

Part no.	Designation	Quantity
A005 997 62 90	Cable strap (no mounting clips required)	1
A006 989 77 85 10	33m roll of vinyl tape (black) lasts for approx. 33 vehicles	1
