Design of traction systems hydraulic unit - GF42.50-P-4000-03D

Model 163 as of 09/02

Model 170 with engine 111, 112

Model 202 with engine 111, 605, 611

Model 203, 209

Model 208 with Engine 111

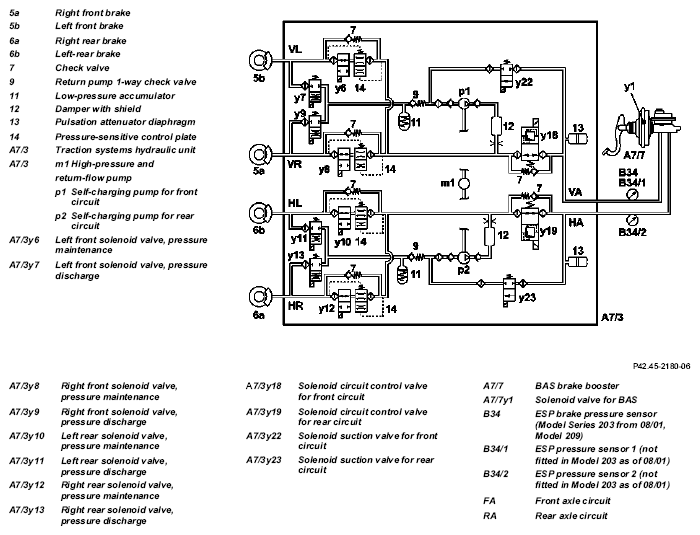

Fig 1: Identifying Design Of Traction Systems Hydraulic Unit
