Brake light switch, component description - GF42.10-P-2010PE

MODEL 203 with ENGINE 271.921

MODEL 203, 209 with ENGINE 271.940

MODEL 211 with ENGINE 271.941

MODEL 203 with ENGINE 271.946

MODEL 203 with ENGINE 271.948

MODEL 209 with ENGINE 271.955

MODEL 211 with ENGINE 271.956

Location shown on model 203, 209

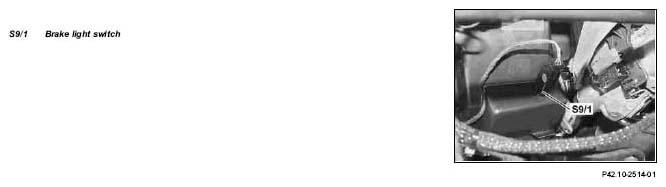

Fig 1: Identifying Brake Light Switch

The brake light switch is located on top of the brake pedal.

Design

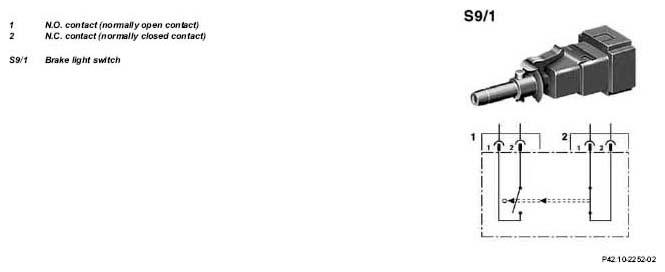

Fig 2: Identifying Brake Light Switch & Circuit Diagram

Function

The N.O. contact (1) transmits the signal for brake pedal actuation to the brake lights (brake lights on).
The N.C. contact (2) transmits the signal for brake pedal actuation directly to the ME-SFI control unit (N3/10) up to approx. 2004, and as of approx. 2004 to the ESP control unit or ESP, PML and BAS control unit (N47-5), which then forwards the signal onto the CAN data bus.
--> The brake signal is used (up to 05/2005), for example, by the ME-SFI control unit (N3/10) to deactivate the cruise control function.
