Removing and installing door liner on rear door - AR72.12-P-1010P

MODELS 203.0 /2

Illustrated on model 203.0

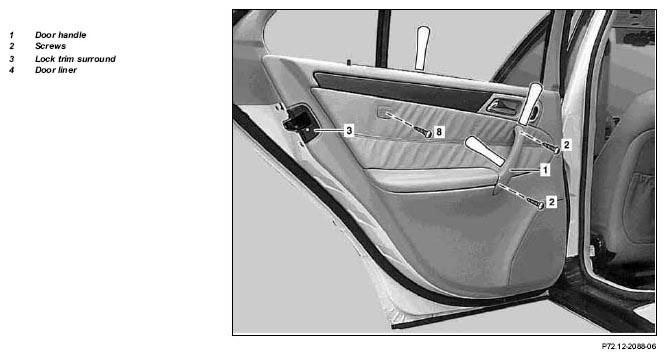

Fig 1: Identifying Door Liner On Rear Door Remove/Install Components (1 Of 2)

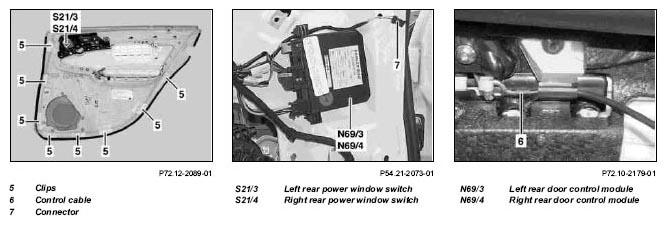

Fig 2: Identifying Door Liner On Rear Door Remove/Install Components (2 Of 2)

	Removing, installing
1	Position assembly wedge at top of door handle (1) and press off	Press not more than 10 mm out of the catch.
		Assembly wedge	Figure
2	Position assembly wedge at bottom of door handle (1) and press off	Assembly wedge	Figure
3	Take out door handle (1)
4	Unscrew screws (2)
5	Unclip SRS panel and unscrew screw (8)	With code (293) side airbag in left and right rear
6	Remove lock trim surround (3)	Torx bit set	Figure
7	Press door liner (4) off of inner door panel at bottom at front and rear in area of clips (5) with assembly wedge	Inspect clips for damage.
		Assembly wedge	Figure
8	Use assembly wedge to lift top of door liner (4) out of the sealing rail	Assembly wedge	Figure
9	Unhook control cable (6) from inner door actuation
10	Detach connector (7)	On left rear power window switch (S21/3), right rear power window switch (S21/4).
11	Place door liner (4) down
12	Install in the reverse order

Fig 3: Identifying Assembly Wedge (110 589 03 59 00)

Fig 4: Identifying Torx Bit Set (000 589 01 10 00)
