Remove/install power window in front door - AR72.10-P-1800P

MODEL 203

Shown on model 203 without window clamp

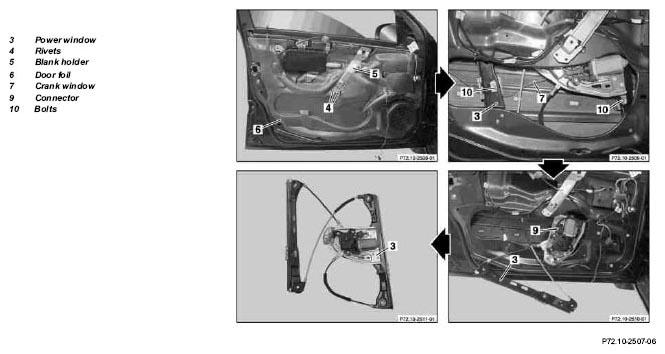

Fig 1: Identifying Power Window In Front Door Remove/Install Components (1 Of 3)

Shown on model 203 without window clamp

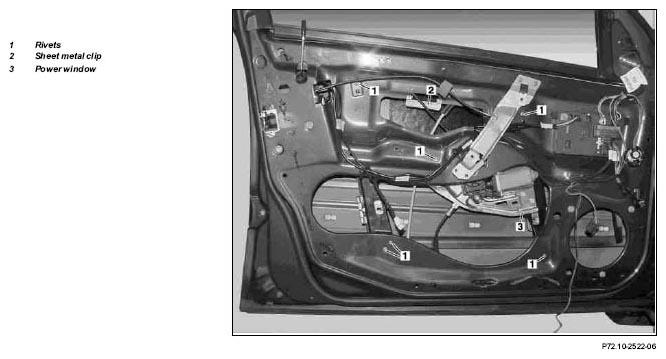

Fig 2: Identifying Power Window In Front Door Remove/Install Components (2 Of 3)

Shown on model 203 without window clamp

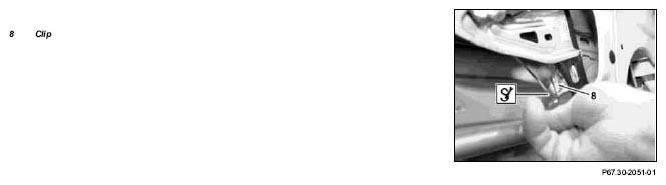

Fig 3: Identifying Power Window In Front Door Remove/Install Components (3 Of 3)

	Remove/Install
	Risk of injury to fingers being jammed or pinched when Remove/install or aligning hoods, doors, trunk lid/tailgate or sliding roof.	When moving components, ensure that no body parts or limbs are within the operating range of moving parts.	AS00.00-Z-0011-01A
1	Remove front door sidebag unit		AR91.60-P-0690P
2	Remove front door speakers		AR82.62-P-7845P
3	Drill rivets (4) out of blank holder (5) or cut out	Only the two bottom rivets Remove rivet residues and chips from door, risk of rust.
4	Remove door foil (6)
5	Loosen crank window (7) from power window (3)		AR72.10-P-1900P
		Bolt, power window to crank window	*BA72.10-P-1013-01A
		Bolt, window clamp, window to power window	*BA72.10-P-1014-01A
6.1	Press clip (8) out of crank window (7)	Model 203 without window clamp
7	Move crank window (7) upward	Fasten with adhesive tape
8	Drill rivets (1) out of power window	Six each Remove rivet residues and chips from door, risk of rust.
9	Remove power window (3)	Unhook from inner door panel and remove through assembly opening, disconnect connector (9) from power window motor. Installation: Lay cables on sheet metal clip (2) "black" rear and "gray" front.
10.1	Remove clip (8) from power window mount	Model 203 without window clamp Installation: Check clip (8) for damage, replace if necessary
11	Install in the reverse order
12	Adjust crank window (7)		AR72.10-P-1900P
13.1	Check gap between clip (8) and glass surface of crank window (7)	Model 203 without window clamp	*BE72.10-P-1002-01A
		Feeler gage 0.04 -0.15 mm	*WH58.30-Z-1007-12A
14	Synchronize power window
	Synchronization of power windows, function		GF72.29-P-4003PP
15	Read out fault memory
	Connect STAR DIAGNOSIS, read out fault memory		AD00.00-P-2000-04A
		Diagnosis system STAR DIAGNOSIS	*WH58.30-Z-1048-13A
16	Perform function check

TEST AND ADJUSTMENT VALUES FOR FRONT DOOR

Number	Designation		Model 203
BE72.10-P-1002-01A	Gap between clip of power window and glass surface of crank window	mm	0 (+0.1)

FRONT DOOR

Number	Designation		Model 203
BA72.10-P-1013-01A	Bolt of power window to crank window	Nm	4
BA72.10-P-1014-01A	Bolt, window clamp, window to power window	Nm	8

COMMERCIALLY AVAILABLE TOOLS

Number	Designation
WH58.30-Z-1007-12A	Steel rule
WH58.30-Z-1048-13A	STAR DIAGNOSIS diagnosis system, Compact Passenger Car	6511 1801 00
