Throttle valve actuator position - GF30.22-P-4101-01GA

Engine 111

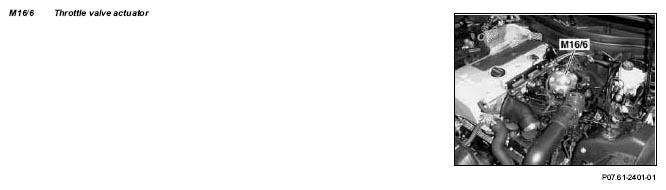

Fig 1: Identifying Throttle Valve Actuator - Engine 111

G04733080
