Pedal value sensor position - GF30.20-P-4011-01P

Model 203, 209

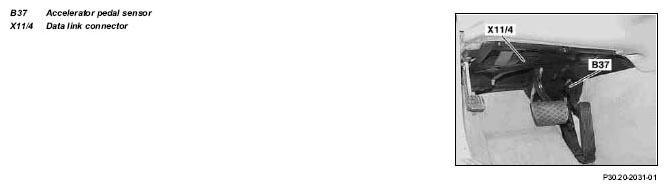

Fig 1: Identifying Accelerator Pedal Sensor And Data Link Connector
G04733058

The accelerator pedal sensor is located at the top of the accelerator pedal module.
