Camber Strut: Removal

  1. Raise and support vehicle. Remove wheels.
  2. Remove bolt of tension arm (3) at wheel carrier. See Fig 1.
  3. Remove bolt of camber strut (2a) at rear carrier. Press down camber strut (2).
  4. Remove camber strut at wheel carrier.

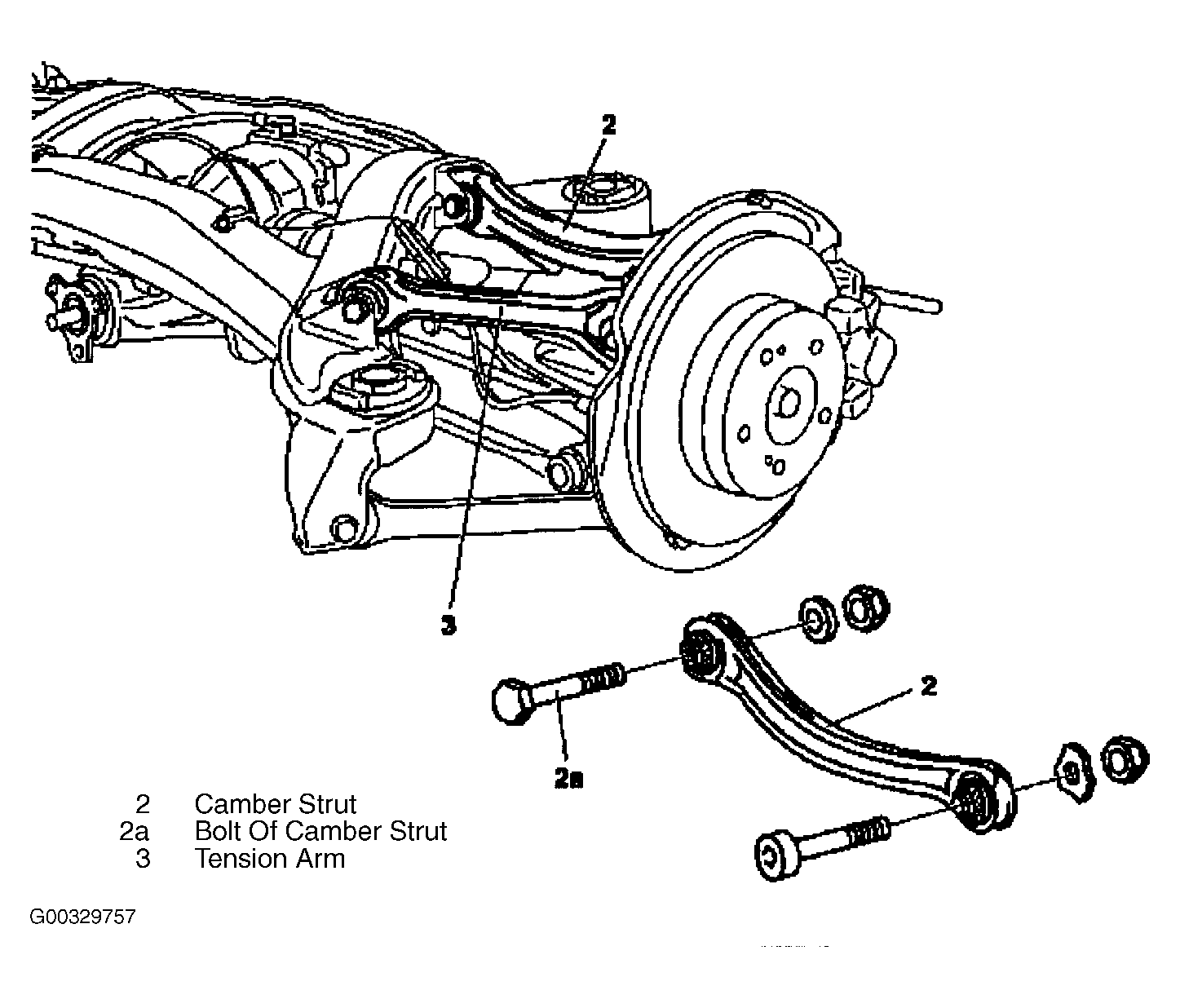

Fig 1: Removing & Installing Camber Strut
G00329757Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
