Supplemental restraint systems control unit, location/task/design - GF91.60-P-4018PM
MODELS 203.0 /2 /7 as of 24.4.04

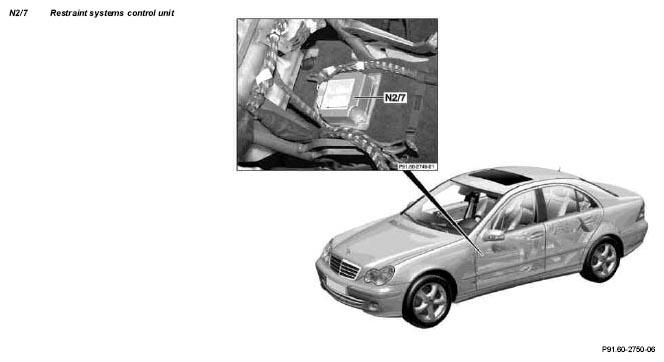

| Restraint systems control unit position | The restraint systems control unit (N2/7) is installed on the transmission tunnel below the center console. | ||
| Restraint systems control unit, task | Except for code (494a) USA version Model 203.0/2 up to 5/31/04, with code (494a) USA version |
GF91.60-P-4018-01PM | |
| Models 203.7, 203.0/2 as of 5/31/04, with code (494a) USA version |
GF91.60-P-4018-01PMU | ||
| Restraint systems control unit design | The restraint systems control unit (N2/7) is housed in an aluminum housing. The housing and electrical connection of the control unit are designed such that malfunctions as a result of disturbances can be reliably ruled out. |
