Remove, install air cleaner housing - AR09.10-P-1150PK

ENGINE 111.955 in MODEL 203.045 /245 /745

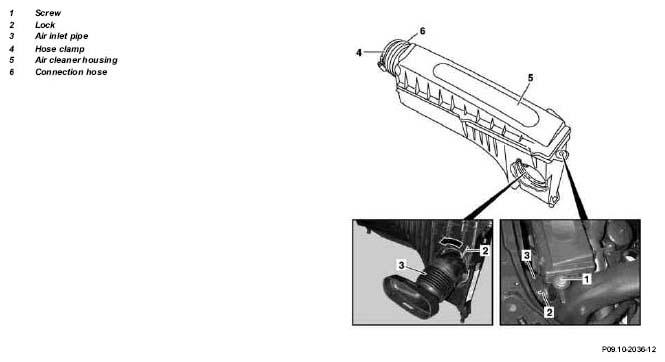

Fig 1: Identifying Air Cleaner Housing Remove/Install Components - Engine 111.955

	Removing, installing
1	Unscrew screws (1)
2	Open lock (2) of air inlet pipe (3) (arrow)
3	Slacken hose clamp (4)	Installation:  Inspect hose clamp, replace if necessary.
4	Pull air cleaner housing (5) up and off and remove	Installation:  Moisten rubber retainer of the air cleaner housing with lubricant. Inspect connection hose (6) between air cleaner housing (5) and recirculating air flap actuator, replace if necessary.
5	Install in the reverse order
