Cut out rear window with cutting blade - AR67.20-P-2000-02P

Risk of injury from slipping when clamping blade in the multicutter and from glass splinters when cutting out bonded windows

Always interrupt air supply when inserting or removing blade.

Wear protective gloves and protective glasses.

Fig 1: Identifying Cutting Blade (124 589 03 63 00)

Fig 2: Identifying Cutting Blade (124 589 40 63 00)

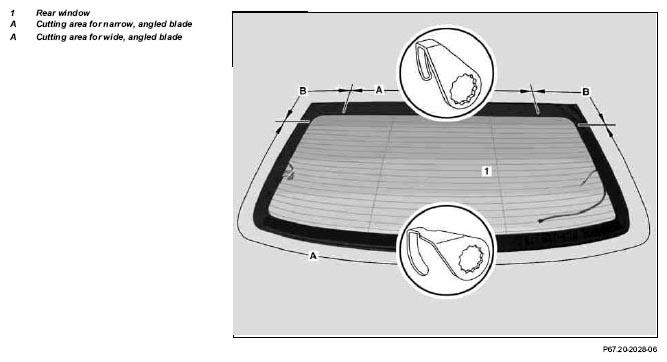

Fig 3: Identifying Rear Window And Cutting Area

When cutting out rear window (1), the outer edge lip will also be cut through. This prevents reinstallation of the rear window (1)

1. Clamp angled, narrow cutting blade into multicutter.
2. Moisten oil stone and sharpen both sides of cutting blade with multicutter switched on.
3. Cut out rear window (1) in area "A" from outside while moving cutting blade along rear window (1) as tight as possible in upper area.
4. Clamp angled, wide cutting blade Into multicutter .
5. Moisten oil stone and sharpen both sides of cutting blade with multicutter switched on.
6. Cut out rear window (1) in area "B" from outside.
