Aligning rear window in body opening - AR67.20-P-2000-04P
TEST VALUES FOR TAILGATE WINDOW, REAR WINDOW
| Number | Designation | Model 203.0 | ||
|---|---|---|---|---|
| BE67.20-P-1001-01E | Distance between top edge of rubber channel seal and rear edge of roof | Dimension "A" | mm | 5 |
| Fig. see | - | |||
- Before applying the cement, position the rear window over the body opening and center it at the sides (dimension "A", measured between top edge of rubber channel seal and rear edge of roof).

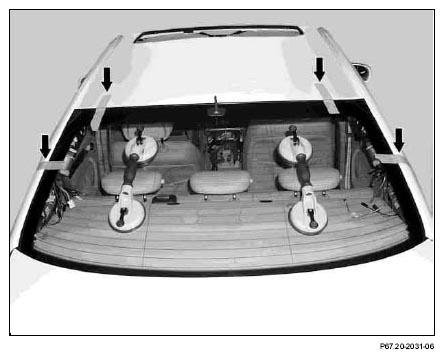

- Attach strips of adhesive tape (arrows), cut through at top edge of rubber channel seal and remove rear window.
