Removing and installing side paneling in rear - AR68.30-P-4780PA

MODEL 203.2

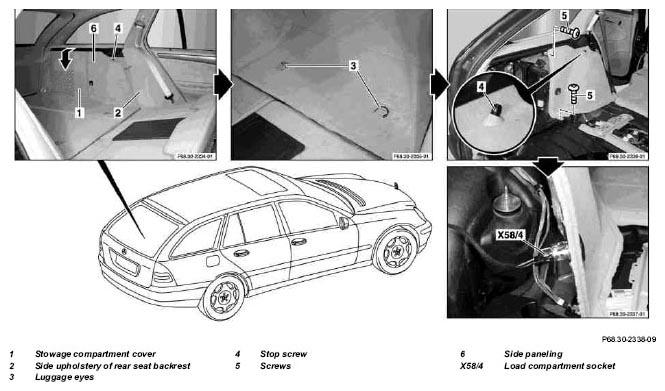

Fig 1: Identifying Side Paneling In Rear Remove/Install Components

	Removing, installing
	Protect removed parts against contamination
1	Remove floor covering in load compartment	Installation:  Move luggage eyes (3) through load compartment floor covering.	AR68.20-P-4810PB
2	Release rear seat backrest and fold forward
3	Open stowage compartment cover (1) and remove.	Observe direction of arrow.
4	Remove side upholstery (2) from rear seat backrest		AR91.12-P-1710P
5	Unscrew stop screw (4) from side paneling (6)	Installation:  Observe installation position of stop screw (4). Double cover should be positioned on stop screw (4) without tension to release rear seat backrest from load.
6	Unscrew screws (5) from side paneling (6)
7	Disconnect load compartment socket (X58/4)
8	Remove side paneling (6)
9	Install in the reverse order
