| 1 |

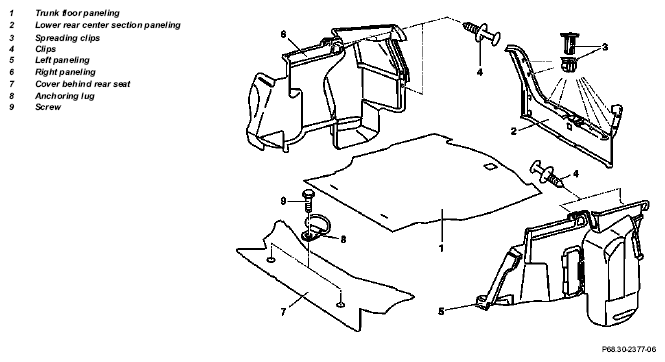

Remove trunk floor paneling (1) |
Move anchoring lugs (8) through trunk floor paneling (1). |
|
| 2 |
Unscrew bolt (9) |
On left and right. |
|
| |
|
Screw for anchoring lug at front in trunk. |
*BA68.50-P-1002-03A |
| 3 |
Remove anchoring lugs (8) |
On left and right. |
|
| 4 |
Remove cover behind rear seat (7) |
|
|
| 5 |
Unclip spreading clips (3) |
Spreading clips on bottom rear center section paneling (2). |
|
| 6 |
Remove bottom rear center section paneling (2) |
|
|
| 7 |
Unclip clips (4) |
Clips on left paneling. |
|
| 8 |
Remove left paneling (5) |
|
|
| 9 |
Unclip clips (4) |
Clips on right paneling. |
|
| 10 |
Remove right paneling (6) |
|
|
| 11 |
Install in the reverse order |
|
|
