Remove/install and adjust trunk lid lock and striker eye - AR88.50-P-5020P
MODEL 203.0
| Remove/Install | |||
|---|---|---|---|

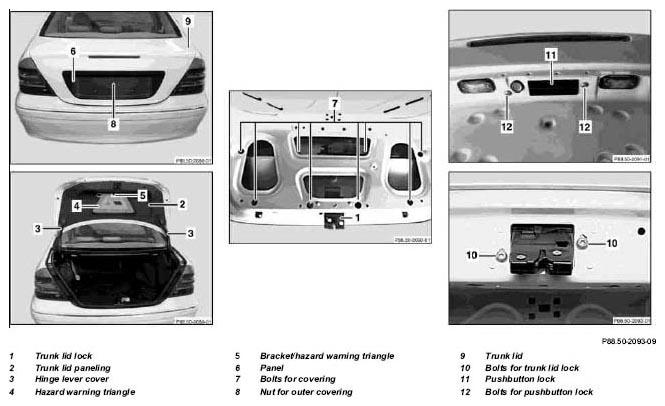

| 1 | Remove hazard warning triangle (4) | ||
| 2 | Remove bracket (5) | ||
| 3 | Remove hinge lever cover (3) | ||
| 4 | Remove trunk lid paneling (2) | ||
| 5 | Unscrew nut (8) and bolts (7) and remove covering (6) | ||
| 6 | Disconnect electrical connector from trunk lid lock (1) | ||
| 7 | Loosen bolts for trunk lid lock (10) | ||
| 8 | Disconnect electrical connector from pushbutton lock (11) | ||
| 9 | Unscrew bolts for pushbutton lock (12) | ||

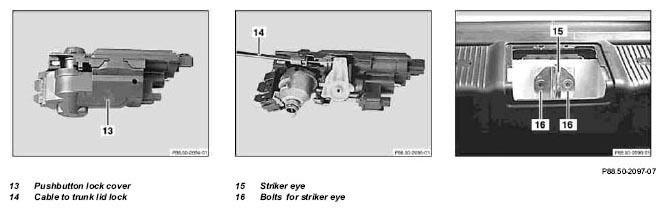

| 10 | Open pushbutton lock cover (13) | ||
| 11 | Unhook cable (14) | ||
| 12 | Unscrew bolts for striker eye (16) | ||
| 13 | Remove striker eye (15) from rear end center section | ||
| 14 | Install in the reverse order | ||
| Adjust | |||
| 15 | Screw in bolts for trunk lid lock (10) | ||
| 16 | Tighten bolts (10) | *BA88.50-P-1002-01A | |
| 17 | Align striker eye (15) | ||
| 18 | Check trunk lid (9) fit in relation to rear fenders | ||
| Gaps on hoods, doors and lids | *BE60.00-P-1003-01E | ||
If fit is not precise: ↓ |
Figure | ||
| Adjust trunk lid. | AR88.50-P-5200P | ||
| 19 | Adjust striker eye (15) | ||
| 20 | Tighten bolts (16) | *BA88.50-P-1004-01A | |
| 21 | Check closing system for proper function |
TEST VALUES FOR GAPS ON HOODS, DOORS AND LIDS
| Number | Designation | Model 203.004/006/ 007/008/016/ 018/020/035/ 040/042/043/ 045/046/052/ 056/061/064/ 065/081/084/ 087 | |||
|---|---|---|---|---|---|
| BE60.00-P-1003-01E | Gap dimension | Trunk lid to top of rear fender | Dim. "F" | mm | 3.5 (± 1) |
| Trunk lid to taillamp | Dim. "M" | mm | 4 (± 1) | ||
| Rear fender to taillamp | Dim. "U" | mm | - | ||
| Fig., see | AR60.00-P-0700-01P | ||||
| Number | Designation | Model 203 | |
|---|---|---|---|
| BA88.50-P-1002-01A | Bolt on trunk lid lock | Nm | 10 |
| BA88.50-P-1004-01A | Bolt to striker eye | Nm | 10 |
