Retrofitting antenna for global positioning system (GPS) - AN82.61-P-7474-04PA

Glue felt strap to bottom of GPS antenna (A2/49a2).
Remove backing foil from GPS antenna (A2/49a2) and glue antenna to right inner side of instrument cluster cover.
Opening of antenna should point toward vehicle window.
Route antenna lead (11) to radio shaft in center console

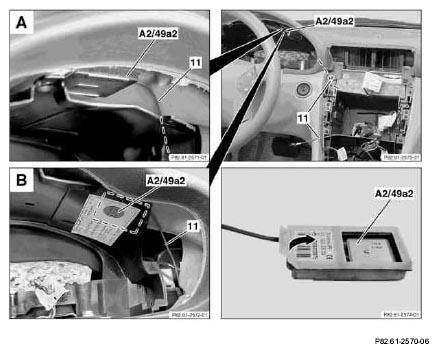

1. Location of GPS antenna on model 203.0/2
2. Location of GPS antenna on model 203.7

  Fig 1: Identifying Global Positioning System (GPS) Antenna Location
Connect antenna lead (11) to GPS connector of radio and navigation unit (A2/56) (see arrow).
Reassemble radio and navigation unit (A2/56) with antenna and connector leads

Fig 2: Identifying Antenna Lead And Radio And Navigation Unit
