UPCI control unit (Universal Portable CTEL Interface), location/purpose - GF82.70-P-5100PM
MODELS 203.0 /2 /7 as of 24.4.04 with CODE (388) "Portable CTEL" UPCI telephone system
Illustrated on Model 203.0

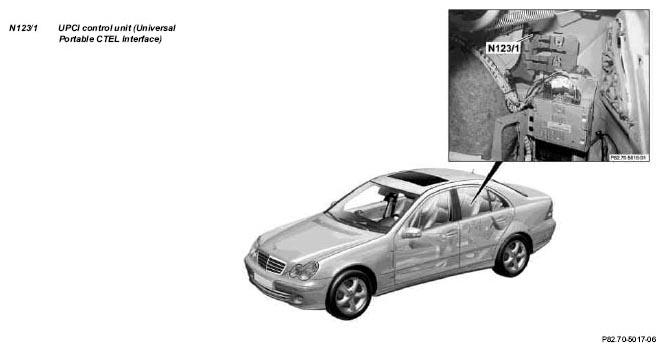

| UPCI (Universal Portable CTEL Interface) control unit, location | The UPCI (Universal Portable CTEL Interface) control unit (N123/1) is located on the right in the luggage compartment at the wheelhouse. | ||
| UPCI (Universal Portable CTEL Interface) control unit, task | The UPCI control unit (Universal Portable CTEL Interface) (N123/1) converts electrical signals into optical signals and vice-versa. |
