Removing and installing front spring - AR32.20-P-0200B: Notes

MODEL 140, 170, 202, 208, 210

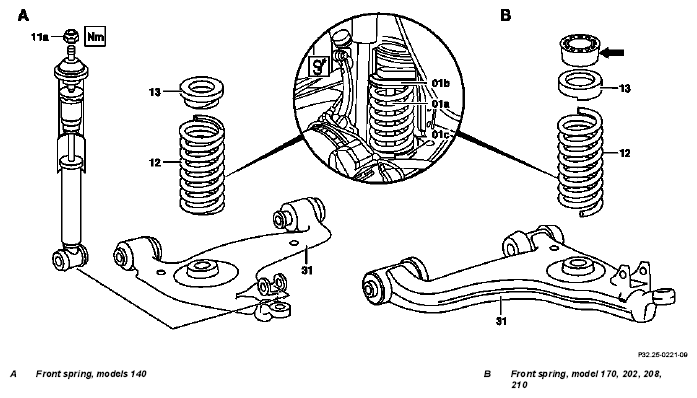

Fig 1: Identifying Front Spring Remove/Install Components (Model 140, 170, 202, 208, 210)

	Removing, installing
	General information on springs	Models 129, 140, 168, 170, 202, 208, 210	AH32.20-P-9404-01A
1	Detach upper shock absorber fixing and raise vehicle.	Model 140 The vehicle must be on its wheels for removing the upper shock absorber fixing. Steady piston rod using Allen wrench
		Installation:  Replace self-locking nut (11a).	*BA32.25-P-1001-01A
2	Insert clamping plates (01b, 01c)	Model 140	Figure
		Models 170, 202, 208, 210	Figure
3	Insert clamping device (01a)		Figure
		Model 210 alternatively	Figure
	Risk of injury  from being trapped or crushed  when working on preloaded springs or spring bodies	Only use approved clamping devices and if appropriate also screen off the danger area. Check special tools for damage and function, (visual inspection). Wear safety gloves.	AS00.00-Z-0001-01A
4	Clamp, unclamp front spring		AR32.20-P-0200-01A
5	Remove front spring (12) with rubber mount (13) forwards	Clean wishbone in area of support surface Models 170, 202, 208, 210: additionally insert plastic support (arrow) Models 202, 210: insert zinc sealing washer for England and Scandinavia.
	Modified front and rear springs	Model 202 After replacing the front spring or rubber mount: ↓	BT32.20-P-0001-01A
		Check and correct headlamp adjustment	AP82.10-P-8260A
6	Install in reverse order

Front axle shock absorber

Number	Designation		Model 140
BA32.25-P-1001-01A	Self-locking nut for fastening shock absorber to front end	Nm	40

Fig 2: Identifying Spring Compressor (202 589 01 31 00)

Fig 3: Clamping Device (202 589 02 31 00)

Fig 4: Identifying Tensioning Plates (202 589 14 63 00)

Fig 5: Identifying Tensioning Plates (202 589 13 63 00)
