Removal and installation of foot controls - AR29.10-P-0300A
MODEL 129, 163, 170, 202, 208, 210
| Removing, installing | |||
|---|---|---|---|
| Risk of poisoning due to swallowing brake fluid. Risk of injury due to brake fluid coming into contact with the skin and eyes. | Only pour brake fluid into suitable, appropriately marked containers. Wear protective clothing and safety glasses when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on brake fluid | All models | AH42.50-P-0001-01A | |
| 1 | Remove cover under left of instrument panel | Model 129 | ra68001290150x |
| Model 163 | AR68.10-P-1500GH | ||
| Model 170 | AR68.10-P-1500G | ||
| Model 202 | AR68.10-P-1500E | ||
| Model 208 | AR68.10-P-1500K | ||
| Model 210 | AR68.10-P-1500F | ||
| 2.2 | Take out left-hand floor carpet | Model 202 | AR68.20-P-2050E |
| 3 | Disconnect connecting hose from brake fluid reservoir to master cylinder | Fig 2 | |

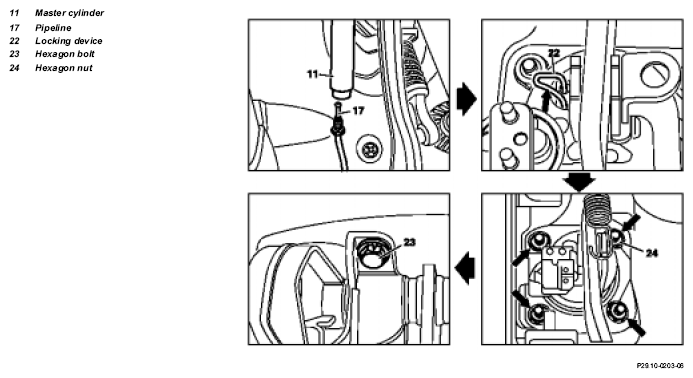

| 4 | Unscrew hydraulic line (17) on master cylinder | ||
| 5 | Disconnect cable plug from stop lamp switch | ||
| 6.1 | Disconnect cable plug from clutch pedal switch | Vehicles with cruise control, code 650 | |
| 7 | Unhook return spring from brake pedal | ||
| 8 | Pull locking device (22) out of the collar stud and take collar stud with bracket out of brake pedal | ||
| 9 | Unscrew hexagon nuts (24) for attaching foot controls to the firewall | ||
| 10 | Unscrew hexagon bolt (23) for attaching foot controls at top of firewall | ||
| 11 | Move the foot controls back until the mounting plate of the pedal carrier releases from the threaded stud | ||
| 12 | Pull off connecting hose from brake fluid reservoir to master cylinder | ||
| 13 | Take out foot controls downwards at an angle | ||
| 14 | Install in reverse order | ||
| 15 | Bleed clutch actuation | AR25.20-P-0070A | |
| 16 | Check system for leaks |
