Removing, installing rear rubber mount for center assembly mount in rear axle carrier - AR35.10-P-0050D: Notes

MODEL 170, 202, 208

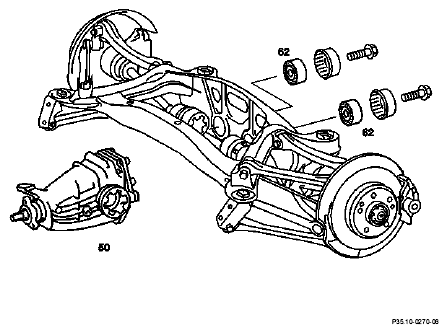

Fig 1: Identifying Rear Rubber Mount And Rear Axle Carrier

	Removing, installing
Installation	Replace self-locking nuts and bolts.
1	Remove complete rear axle assembly from vehicle	Model 170 only	AR35.10-P-0010D
2	Support rear axle with wooden blocks	Model 170 only	AR35.10-P-0050-04A
3	Remove rear axle center assembly (50)		AR35.31-P-0520D
4	Remove rear rubber mount (62) of rear axle center assembly mount		AR35.10-P-0050-02D
		Extraction and insertion tool	Figure
	Inspecting
5	Check installation position of center assembly (50) in rear axle carrier		AR35.10-P-0050-03D
		Extraction and insertion tool	Figure
6	Install in the reverse order

Fig 2: Identifying Removal And Installation Tool (210 589 02 43 00)
