Installing spacer sleeve with bearing washers on both sides on drive pinion - AR35.31-P-0550-26B

  1. Fit a bearing washer (48) on both sides of spacer sleeve (44) and slide onto drive pinion.

    IMPORTANT The spacer sleeve (44) and bearing washers (48) should always be replaced with new ones.

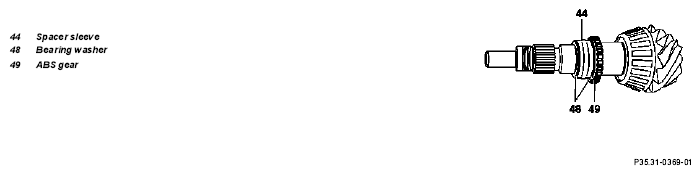

    Fig 1: Identifying Spacer Sleeve, Bearing Washer And ABS Gear
    G04636592
