Remove/install spring link, replace rubber mount - AR35.20-P-0114B: Notes

MODELS 129, 170, 202, 208, 210

Shown on model 129

Fig 1: Identifying Spring Link, Rubber Mount Remove/Install Components - Shown On Model 129
G04636258

Shown on model 210

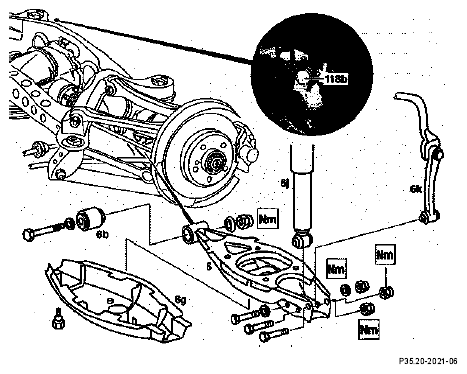

Fig 2: Identifying Spring Link, Rubber Mount Remove/Install Components - Shown On Model 210
G04636259
Fig. item, etc. Work instructions
NOTESInstallation  Replace self-locking nuts
DANGER Risk of fatal accident  from vehicle slipping or toppling off the lift platform Align vehicle between the columns of the lifting platform and position the four support plates at the lifting platform support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
IMPORTANT Remove and install rear spring   AR32.20-P-0230A
  Adjust roll bar switch Model 210 to 09/95
IMPORTANT Following installation		 ra91001290860x
6 Spring link NOTES The rear axle shaft must be horizontal when tightening the nuts
    TORQUE SPECIFICATION Spring link to rear axle carrier *BA35.20-P-1001-01A
    TORQUE SPECIFICATION Spring link to wheel carrier *BA35.20-P-1002-01A
6B Rubber bearing to spring link INSPECT If necessary after checking: ↓
    Remove/install spring link rubber mount AR35.20-P-0114-01B
    SPECIAL TOOL Extraction and insertion tool Figure
REFER TO COMPONENT MODIFICATIONS Harder spring link rubber mount Model 129 BT35.20-P-0001-01A
REFER TO COMPONENT MODIFICATIONS Spring link rubber bearings standardized Models 129, 202 BT35.20-P-0002-01A
6 g Spring link shield
6j Remove shock absorber or spring strut at spring link
TORQUE SPECIFICATION Shock absorber
Model 210		 *BA32.25-P-1002-03B
    Models 170, 129, 202, 208 *BA32.25-P-1003-03A
    TORQUE SPECIFICATION Spring strut (level control system/ADS)
Model 210		 *BA32.30-P-1002-01A
    Models 202, 208 *BA32.30-P-1003-01B
    Model 129 *BA32.31-P-1003-03A
6k Torsion bar link rod TORQUE SPECIFICATION Model 129 *BA32.20-P-1002-04A
    TORQUE SPECIFICATION Models 170, 202, 208 *BA32.20-P-1002-04C
    Model 210 *BA32.20-P-1001-04D
6 l Remove/install guide rail at spring link Model 129 with ASR, ETS, ESP AR35.20-P-0114-02A
36 Frame cross-strut TORQUE SPECIFICATION Models 170, 129 *BA61.10-P-1001-01A
    TORQUE SPECIFICATION Model 208.4 *BA61.10-P-1003-01C
118B Linkage between headlight leveling device and right-hand spring link Vehicles with xenon headlamps only
S83/2, S83/3 Remove/install left or right rear axle roll bar (RB) switch Model 210 to 09/95 ra91001290860x
TORQUE SPECIFICATION Torsion bar on rear axle

Number Designation Model 129 Model 129 with ADS
BA32.20-P-1002-04A Self-locking nut for attaching link rod to spring link Nm 20 20
TORQUE SPECIFICATION Torsion bar on rear axle

Number Designation Model 170 Model 202 without level adjustment Model 202 with level control
BA32.20-P-1002-04C Self-locking nut, link rod to spring link Nm 20 20 20
TORQUE SPECIFICATION Torsion bar on rear axle

Number Designation Model 208 without level control Model 208 with level control
BA32.20-P-1002-04C Self-locking nut, link rod to spring link Nm 20 20
TORQUE SPECIFICATION Torsion bar on rear axle

Number Designation Model 210 with level control system/ADS CODE 217 Model 210 without level control system/ADS CODE 217
BA32.20-P-1001-04D Self-locking nuts of torsion bar link rod to spring link Nm 20 20
TORQUE SPECIFICATION Rear axle shock absorber

Number Designation Model 129 Model 170 Model 202
BA32.25-P-1003-03A Self-locking nut for attaching shock absorber to spring link   Nm 55 55 55
M10 Nm - - -
TORQUE SPECIFICATION Rear axle shock absorber

Number Designation Model 208
BA32.25-P-1003-03A Self-locking nut for attaching shock absorber to spring link   Nm 55
M10 Nm -
TORQUE SPECIFICATION Rear axle shock absorber

Number Designation Model 210
BA32.25-P-1002-03B Self-locking nut for attaching shock absorber to spring link Nm 55
TORQUE SPECIFICATION Rear axle spring strut

Number Designation Model 210.0 with level control system/ADS
BA32.30-P-1002-01A Self-locking nut, level control system/ADS strut to spring link Nm 55
TORQUE SPECIFICATION Rear axle spring strut

Number Designation Model 202 with level control system Model 208 with level control system
BA32.30-P-1003-01B Self-locking nut, spring strut of level control to spring link Nm 55 55
TORQUE SPECIFICATION Strut for rear axle level control system

Number Designation Model 129 with electronic level control/ADS II
BA32.31-P-1003-03A Self-locking nut, spring strut of level control to spring link Nm 55
TORQUE SPECIFICATION Spring link

Number Designation Model 129 Model 170 Model 202
BA35.20-P-1001-01A Self-locking nut of spring link to rear axle carrier 1st stage Nm 70 70 70
2nd stage ∠° - - -
BA35.20-P-1002-01A Self-locking nut, spring link to wheel carrier   Nm 120 120 120
TORQUE SPECIFICATION Spring link

Number Designation Model 208 Model 210 except 210.07 with code 979 and code Z06
BA35.20-P-1001-01A Self-locking nut of spring link to rear axle carrier 1st stage Nm 70 70
2nd stage ∠° - -
BA35.20-P-1002-01A Self-locking nut, spring link to wheel carrier   Nm 120 120
TORQUE SPECIFICATION Frame floor

Number Designation Model 129 Model 170
BA61.10-P-1001-01A Self-locking bolt, rear cross strut to frame floor Nm 120 60
TORQUE SPECIFICATION Frame floor

Number Designation Models 208.435/445 447/465/470
BA61.10-P-1003-01C Self-locking bolt, rear cross strut to frame floor Nm 60
Fig 3: Identifying Removal And Installation Tool (129 589 01 43 00)
G04636260
