Reroute interior blower wiring harness - AN83.10-P-0001-01MN

Models 215, 220

1. Route wiring harness for interior blower (1) from the right fuse box (F1/1) with the ring-type terminal into the footwell.
2. Route interior blower wiring harness (1) along the existing cables to the cable connector and fuse box terminal 30 (X4/10) and fasten in place using tie straps.
3. Connect ring-type terminal to designated M8 screw connection (see arrow).
   Fig 1: Identifying Interior Blower Wiring Harness And Fuse Box Terminal 30


   Fig 2: Identifying Interior Blower And Right Fuse Box


4. Remove brown fuse holder (35) with 40A fuse from the right fuse box (F1/1).
5. Unpin red/yellow wire (rt/ge) from brown fuse holder (35).

   The fuse holder (35) and 40A fuse are no longer required.

   Fig 3: Identifying Red/Yellow Wire And Brown Fuse Holder


   Fig 4: Identifying Brown Fuse Holder And Right Fuse Box


6. Insert the unpinned red/yellow wire (rt/ ge) into cell 1 of the 2-pin blower fuse connector's (X64/1) coupling box.
7. Contact 2-pin coupling to blower fuse connector's (X64/1) reciprocal connector on the interior blower wiring harness (1) and place into the right fuse box (F1/1).
   Fig 5: Identifying Blower Fuse Connector And Right Fuse Box


   Fig 6: Identifying Blower Fuse Connector And Red/Yellow Wire


8. The fuse holder for the 40A max. fuse is to be inserted into the unused grommet breakthrough on the right fuse box (F1/1).

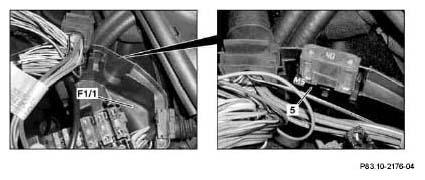

9. Place interior blower wiring harness into the right fuse box (F1/1).
   Fig 7: Identifying Right Fuse Box
